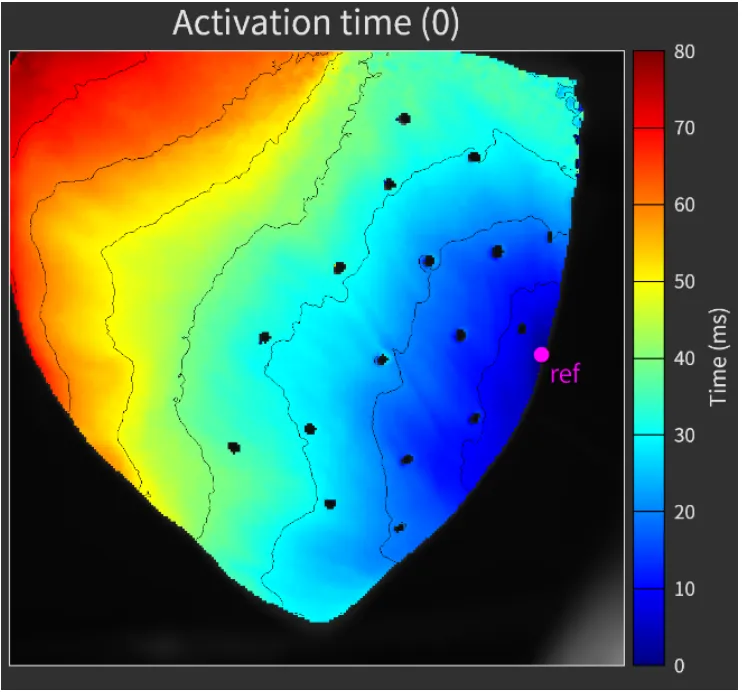

Activation time

info

See the tutorial for how to easily create an activation time map.

1. Select [Time domain analysis] from the [Analyze] menu.

2. Select “Mx” or “Rx” or "Cx" from “Mask”.
3. Select “Activation time” from “Output type”.
4. Select “Fmax2” or “Fmax” or “max (dF/dt)” from “Upstroke detection”.
5. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.

6. Select “Ref. point” and then, click “Min”. If a point position on the image is not correct, drag a point to other position.

7. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
8. Select color map from “Pallete” and select “Black (or Colored)” from “Contour lines”. Adjust “Step”, if needed.
