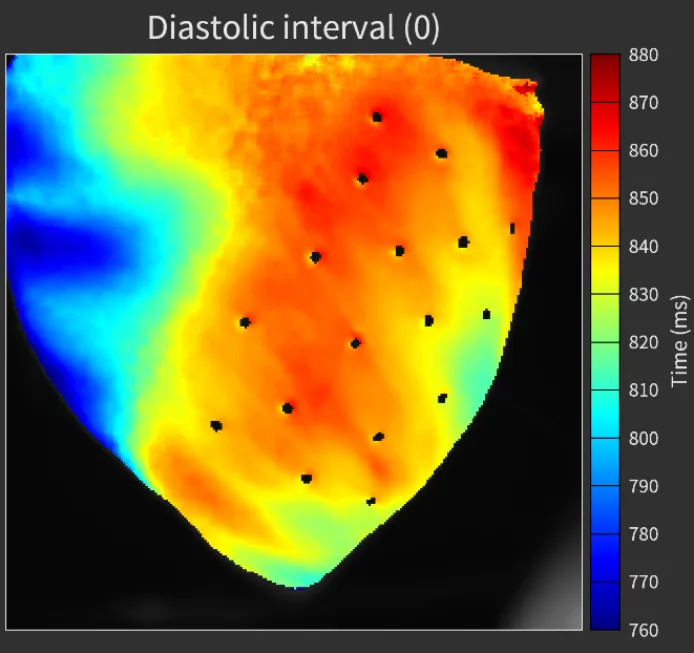

Diastolic interval

  1. Select [Time domain analysis] from the [Analyze] menu.
  2. Select “Mx” or “Rx” from “Mask” .
  3. Select “Diastolic interval” from “Output type”.
  4. Select “Fmax2” or “Fmax” or “max (dF/dt)” from “Upstroke detection”.
  5. Specify “Decay level (%)”.
  6. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.
  7. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
  8. Select color map from “Pallete” and select “Black (or Colored)” from “Contour lines”. Adjust “Step”, if needed.
