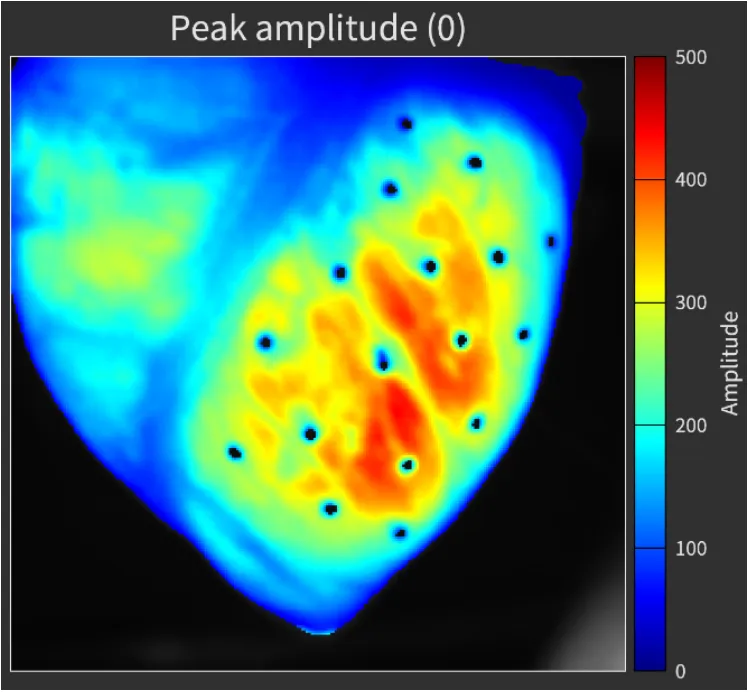

Peak amplitude

  1. Select [Time domain analysis] from the [Analyze] menu.
  2. Select “Mx” or “Rx” or "Cx" from “Mask”.
  3. Select “Peak amplitude” from “Output type”.
  4. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.
  5. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
  6. Select color map from “Pallete”.
