Decay tau

  1. Select [Time domain analysis] from the [Analyze] menu.
  2. Select “Mx” or “Rx” from “Mask” .

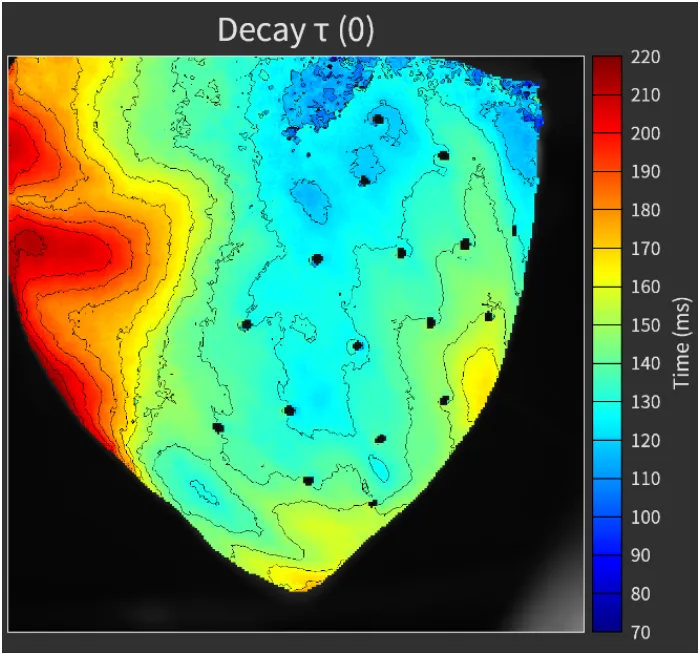

  3. Select “Decay τ” from “Output type”.
  4. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.
  5. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
  6. Select color map from “Pallete” and select “Black (or Colored)” from “Contour lines”. Adjust “Step”, if needed.
