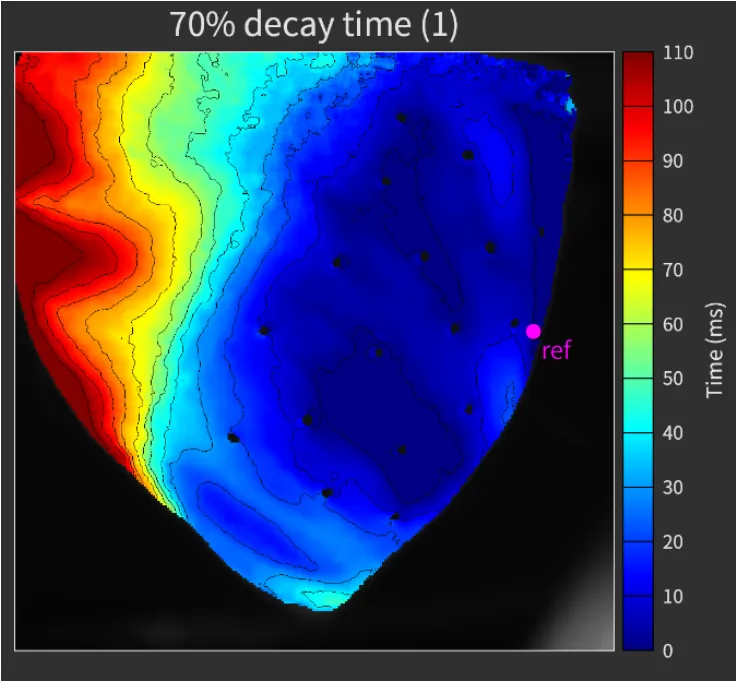

Repolarization time

  1. Select [Time domain analysis] from the [Analyze] menu.
  2. Select “Mx” or “Rx” or "Cx" from “Mask”.
  3. Select “Repolarization time” from “Output type”.
  4. Set “Decay level (%)”.
  5. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.
  6. Select “Ref. point” and then, click “Min”. If a point position on the image is not correct, drag a point to other position.
  7. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
  8. Select color map from “Pallete” and select “Black (or Colored)” from “Contour lines”. Adjust “Step”, if needed.
