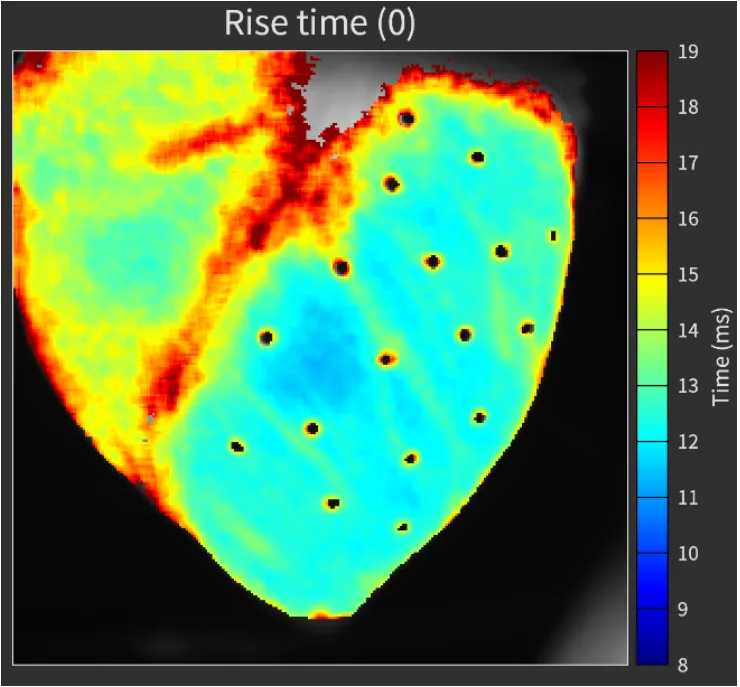

Rise time

  1. Select [Time domain analysis] from the [Analyze] menu.
  2. Select “Mx” or “Rx” or "Cx" from “Mask”.
  3. Select “Rise time” from “Output type”.
  4. Select “Fmax2” or “Fmax” or “max (dF/dt)” from “Upstroke detection”.
  5. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.
  6. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
  7. Select color map from “Pallete”.
