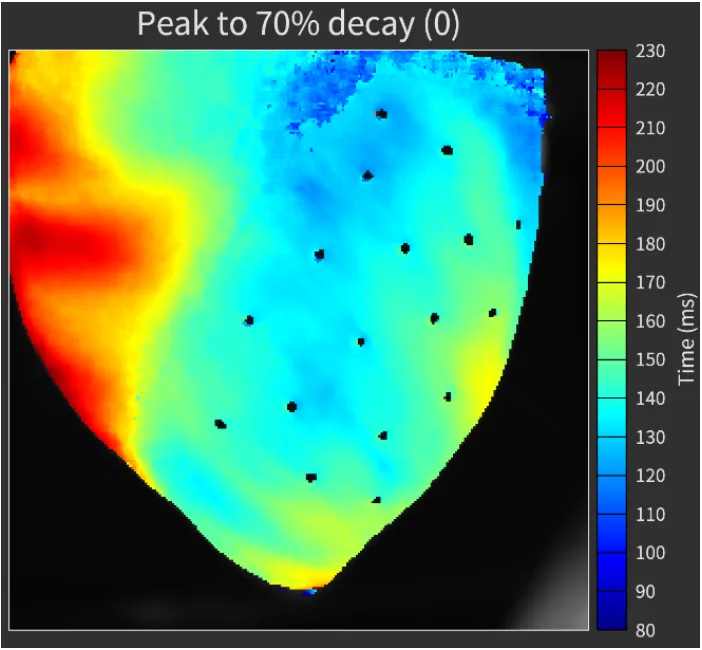

Peak to repolarization time

  1. Select [Time domain analysis] from the [Analyze] menu.
  2. Select “Mx” or “Rx” or "Cx" from “Mask” .
  3. Select “Peak to repolarization time” from “Output type”.
  4. Specify “Decay level (%)”.
  5. Hold “Ctrl” key and drag mouse pointer to right to select time range of waveform. Then, click “CREATE MAPS”.
  6. Click “Auto” to automatically set display range. Change “Min” and “Max”, if needed.
  7. Select color map from “Pallete”.
