Set FOV size of data

Set the FOV size. The set FOV size is used for scale bar display and analysis that requires length such as conduction velocity.

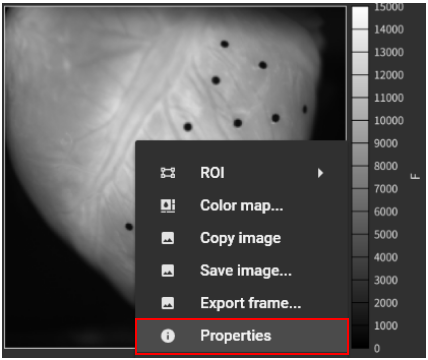

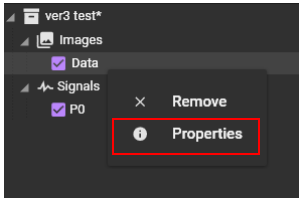

Right click on the image or Right click on the data name of the tree. Then, select "properties".

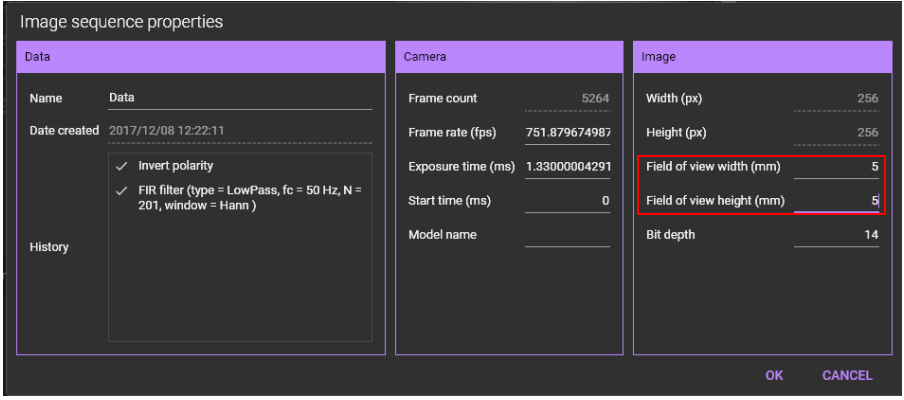

Ser "Field of view width (mm)" and "Field of view height (mm)". Then, click "OK".

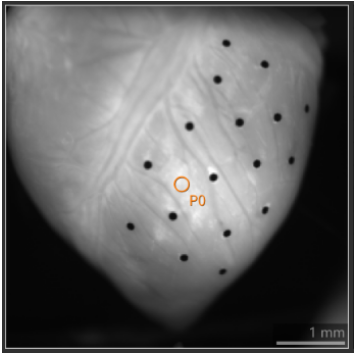

A scale bar appears at the bottom right of the image.
