Waveform CSV data (*.csv)

Waveform data can be saved in a CSV file.

Click "Save chart values" at the top of the waveform to save waveform data in a CSV file.

note

Values are output in a format that corresponds to the "Math" and "%" settings at the top of the displayed waveform.

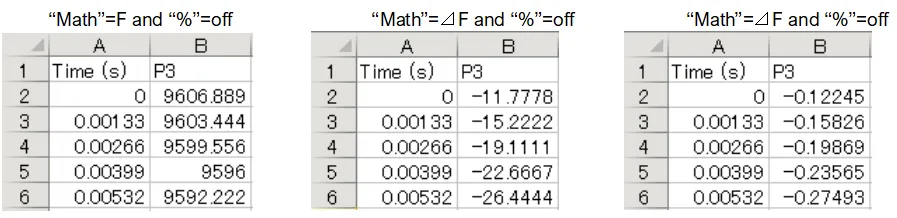

Example of CSV file
